Dragon Runner 20
Small and lightweight, yet rugged and feature-packed, QinetiQ North America's innovative Dragon Runner 20 Small Unmanned Ground Vehicle (SUGV) is a highly specialized unmanned system uniquely suited to give users the ability to literally see around corners and into tight spaces. Modular and reconfigurable, the mission dictates exactly how Dragon Runner will be used - making it the perfect choice for a wide range of military applications, especially in congested urban settings.
The Dragon Runner 20 SUGV provides a rugged, flexible solution to ordinance disposal, reconnaissance, inspection, and security in military and
first responder applications. It provides an extra set of eyes and the dexterity to go where personnel can't, whether
it's under a car at a security checkpoint, or deep inside a sewer or drainpipe.

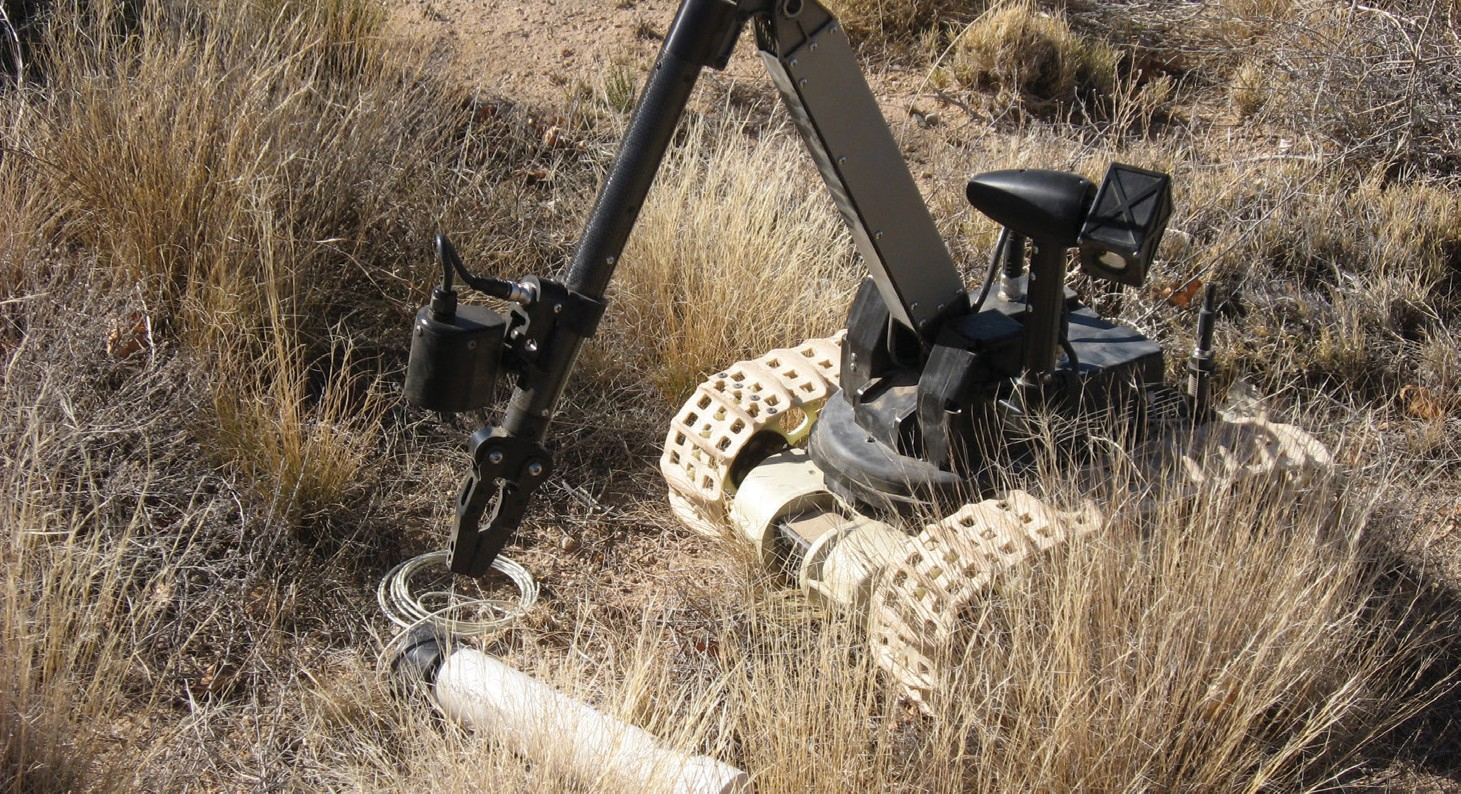

Dragon Runner 20 SUGV can lift from 5 to 10 lbs with its manipulator arm, which has a rotating shoulder, wrist and grippers for dexterity. It can also expand its mission capabilities when fitted with tracks for enhanced mobility. Reconnaissance/surveillance options for the robot include day night cameras, pan/ tilt /zoom cameras, motion detectors and a microphone for listening capability. Dragon Runner 20 SUGV also has extended RF operating capabilities and can operate in a jammed environment.
Dragon Runner 20 SUGV can lift from 5 to 10 lbs with its manipulator arm, which has a rotating shoulder, wrist and grippers for dexterity. It can also expand its mission capabilities when fitted with tracks for enhanced mobility. Reconnaissance/surveillance options for the robot include day night cameras, pan/ tilt /zoom cameras, motion detectors and a microphone for listening capability. Dragon Runner 20 SUGV also has extended RF operating capabilities and can operate in a jammed environment.
Specifications
- 20 lbs
- 12.2w x 16.6l x 6h inches
- Lift capacity: 10 lbs (max)
- Reconnaissance
- Buildings
- Sewers
- Drainpipes
- Access tunnels
- Caves and courtyards
- Perimeter security using on-board motion and sound detectors
- Checkpoint security
- Under-vehicle inspection
- Inspection of bus, train or plane interiors
- Hostage barricade reconnaissance and negotiation
- Improvised explosive device detection and clearance
- Explosive ordnance disposal (EOD)
- Wheels
- Tracks
- Extended tracks
- Multi-axis manipulator arms
- PTZ servo-cam
- Small Unit Sensor System (SUSS)
