IR PATROL Thermal Monocular

    The IR PATROL is the world’s best priced, 640×480 military grade thermal monocular. It combines a high quality BAE thermal core with advanced miniaturized electronics in a rugged, user friendly housing. Law enforcement, first responders, and sportsmen all have a need to see in the dark, and the IR PATROL puts high end thermal imaging within the reach of most budgets. At the heart of the IR PATROL is a 12 micron, 640×480 resolution BAE thermal core. Images taken by the core are displayed on an integrated super contrast OLED display. The 12 micron sensor technology

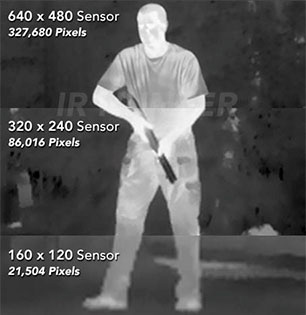

produces even crisper images at 640x480 resolution than older 17 micron sensors. The OLED display is also 640x480 resolution, so images are not upscaled or downsampled. The advanced user interface includes a military grade, five position thumb stick. Together with an intuitive and efficient menu system, the monocular's ergonomic design provides users optimum functionality. The IR PATROL is 100% made in the USA. It features Mil. Spec construction and uses the highest quality systems components available. IR PATROL comes with a three year warranty.

IR PATROL Models

The IR PATROL can be a handheld imager, helmet mounted, or mounted on a weapon. Several models with different features ensure that law enforcement and other users can find a model best suited to their particular applications:

LE100 & LE100C Handheld Systems

Even the base models feature our advanced thumb stick controller, 640×480 resolution, and a fully digital 640x480 OLED display! 2x and 3x magnifiers are available. The LE100C can capture up to 80 images (download cable and software included).
LE100 includes: IR PATROL Sight, Eyecup, Tactical Soft Case, Lanyard, Lens Cap, Operator's Manual, ORG Guide, Batteries.
LE100C includes everything from the LE100 plus: Download Cable, Download PC Software (USB Stick), Download Instructions.

M250 Tactical System

The M250 features a 60Hz frame rate, Edge Detect Mode, image capture, and an integrated Wilcox shoe interface for helmet mounting. Wilcox Breakaway Mounts are also available.
M250 includes: IR PATROL Sight, Eyecup, Tactical Soft Case, Lanyard, Lens Cap, Operator’s Manual, ORG Guide, Batteries, Wilcox Shoe Interface.
M250-K includes everything from the M250 plus: Wilcox Side Mounted Helmet Interface Kit.

M300W & M350B Weapon Systems

The M300W is a mini weapon mountable system that works as a dedicated or clip-on thermal weapon sight. When the monocular is not in use, the optional Wilcox Side-Flip Mount conveniently flips the monocular up and out of the way, then returns to zero when back in operational mode. Wilcox Breakaway Mounts are also available. Also included is clip-on mode capability and a fully adjustable reticle system. The M350B is available by special order only and uses two monoculars on a Wilcox dual bridge mount to provide a true dual thermal system (stereoscopic vision). It also includes an external battery pack and slaved unit functionality (single controller).
M300W includes: IR PATROL Sight, Eyecup, Tactical Soft Case, Lanyard, Lens Cap, Operator’s Manual, ORG Guide, Batteries, Wilcox Shoe Interface.
M300W-K include everything from the M300W plus:Wilcox Side Mounted Helmet Interface Kit.
